GJXFHA Bow-Type Drop Fiber Optical Cable for Duct
Bow-type Duct Drop Optical Fiber Cable GJXFHA 12 core multi mode fiber optic cable
Production Descripition

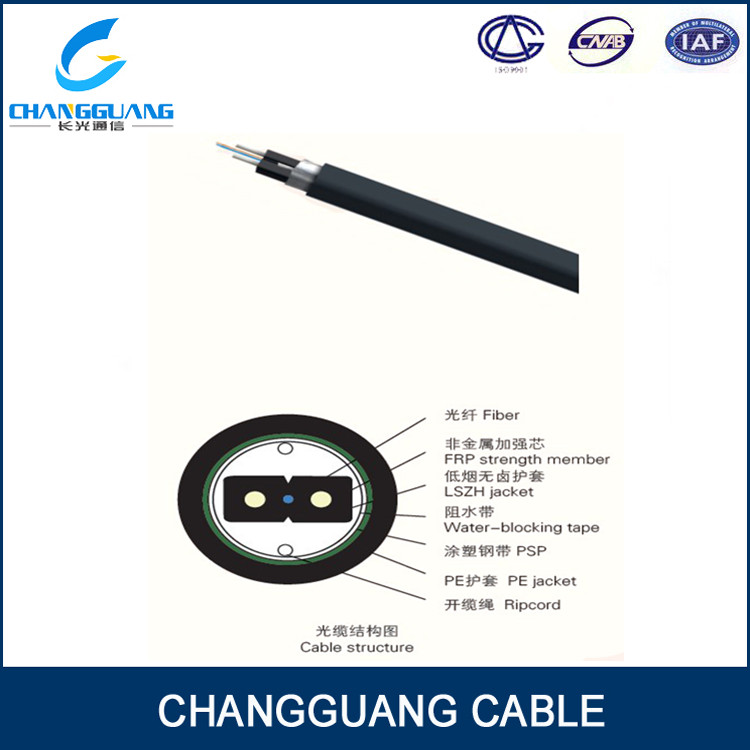

The optical fiber unit is positioned in the center. Two parallel Fiber Reinforced Plastics(FRP) are placed at the two sides. Then, the cable is cmpleted with a black or color LSZH sheath.
Characteristics:
1.Special Low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.
2.Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber.
3.Simple structure , light weight and high practicability.
4.Novel flute design , easily strip and splice , simplify the installation and maintenance.
5.Low smoke , zero halogen and flame retardant sheath , environment-friendly material
1.Access network , fiber to the home.
2.Support the Internet , CATV , telephone and more network service in the future.
Parameter:
|
Cable code |
Fiber count |
Cable size mm |
Cable weight Kg/km |
Tensilse Strength Long/Short term N |
Crush Resistance Long/Short term N |
Bedning Radius Dynamic/Static mm |
|
GJXFHA-1 |
1 |
7.0 |
47 |
30/60 |
300/1000 |
15/30 |
|
GJXFHA-2 |
2 |
7.0 |
47 |
30/60 |
300/1000 |
15/30 |
