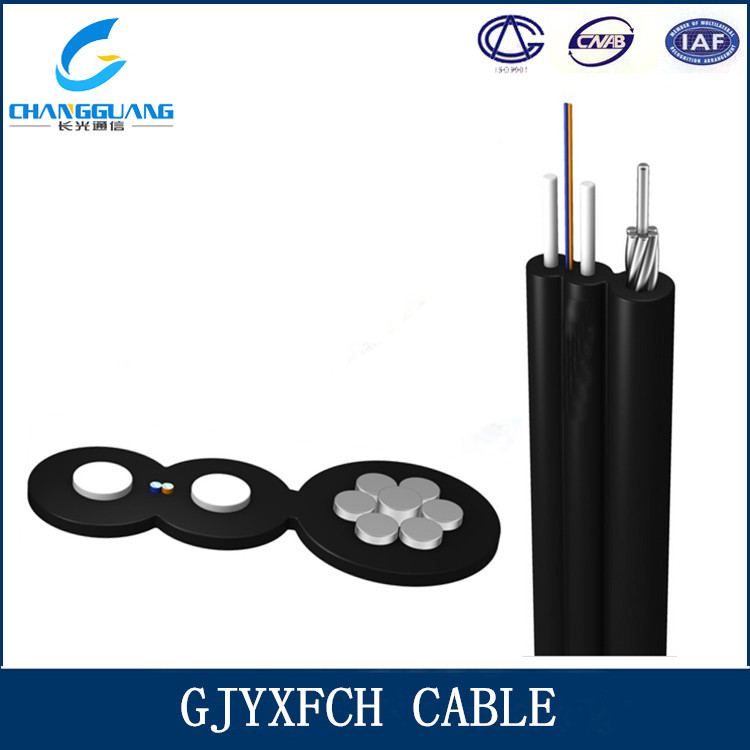

GJYXFCH Self-Suppporting Bow-Type Fiber Optical Drop Cable

Product Descripition

Introduction

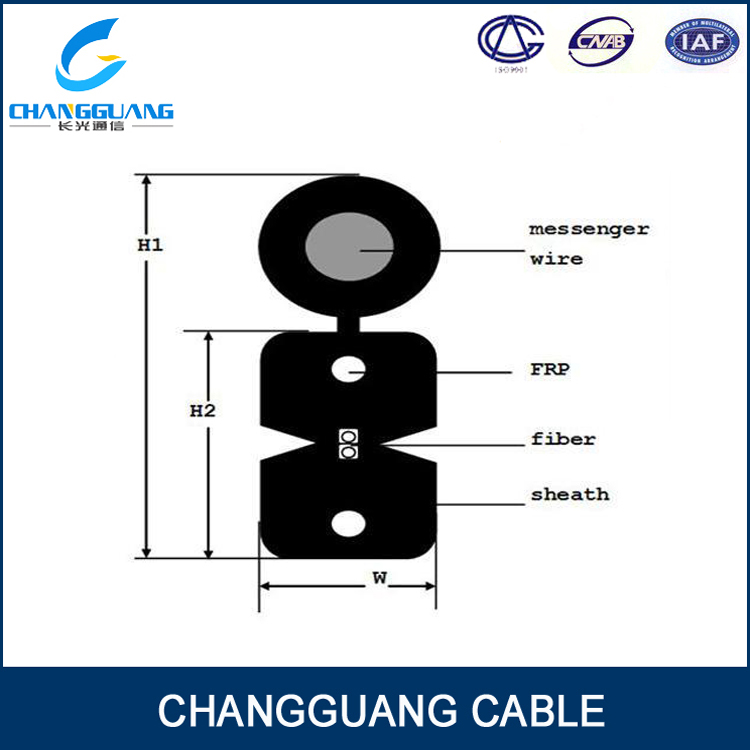

The optical fiber unit is positioned in the center. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. A steel wire as the traditional strength member is also applied. Then, the cable is completed with a black or color LSZH sheath.


Characteristics

1.Special Low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property

2.Two parallel FRP strength memners ensure good performance of crush resistance to protect the fiber

3.Single steel wire as the traditional strength member ensures god performance of tensile strength

4.Simple structure,light weight and high practicablity

5.Novel flute design, easily strip and splice,simplity the installation and maintenance

6. Low smoke, zero halogen and flame retardant sheath


Standards

Comply with standard YD/T 1997-2009,ICEA-596,GR-409,IEC 60794,etc.

Technical Paramatel


Cable  code	Fiber Count	Cable  diameter mm	Cable weight  Kg/km	Tensilse Strength  Long/Short term     N	Crush Resistance  Long/Short term  N	Bedning Radius Dynamic/Static mm
GJYXFH-1	1	(2.0±0.2)×(5.0±0.2)	21	30/60	300/1000	15/30
GJYXFH-2	2	(2.0±0.2)×(5.0±0.2)	21	30/60	300/1000	15/30
GJYXFH-4	4	(2.0±0.2)×(5.6±0.2)	21.5	30/60	300/1000	15/30
GJXH-1	1	(2.0±0.2)×(5.0±0.2)	21	30/60	300/1000	15/30
GJXH-2	2	(2.0±0.2)×(5.0±0.2)	21	30/60	300/1000	15/30
GJXH-4	4	(2.0±0.2)×(5.6±0.2)	21.5	30/60	300/1000	15/30

Note:
1. Cables can be supplied with a range of single mode or multimode fibers.
2. Specially designed Cable structure is available on request.
