GJXFH Bow Type Drop Fiber Optic Cable LSZH Sheath

High Quality GJXFH Drop Fiber Optic Cable 2 Core Ftth Cable

Product Description

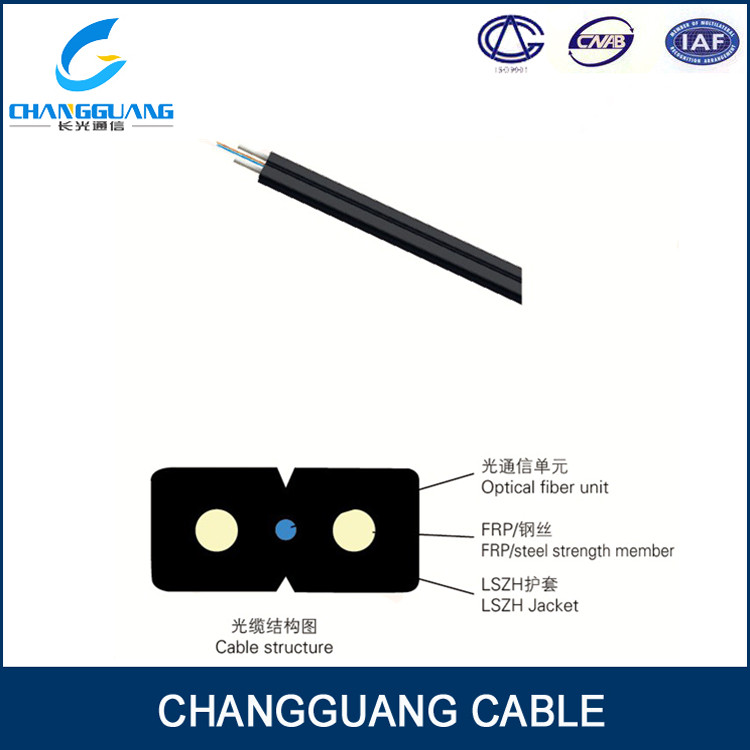

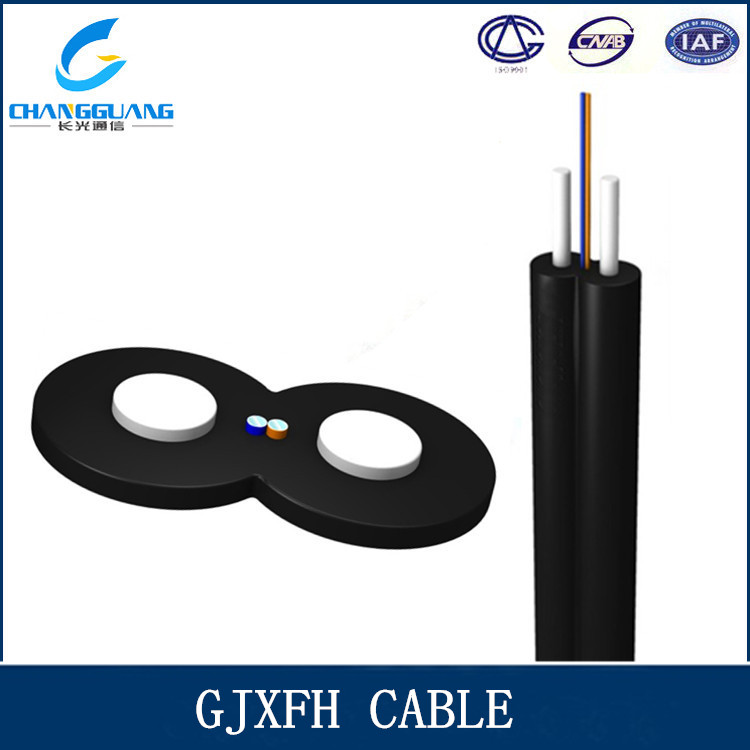

The optical fiber unit is positioned in the center. Two parallel Fiber Reinforced Plastics (FRP) or steel are placed at the two sides. Then, the cable is completed with a black or color LSZH sheath

Characteristics
1.Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
2.Two parallel strength members ensure good performance of crush resistance to protect the fiber
3.Simple structure, light weight and high practicability
4.Low smoke,zero halogen and flame retardant sheath
5.Novel flute design, easily strip and splice, simplify the installation and maintenance

Application
1.Access network , fiber to the home
2.Comply with standard YD/T 1258.2-2003,IECA-596,GR-409,IEC 60794-2-10/11,etc; and meet the requirements of UL approval for OFNR and OFNP.

2. Technical Parameter Of FTTH

Cable code	Fiber Count	Cable  diameter mm	Cable weight  Kg/km	Tensilse Strength  Long/Short term     N	Crush Resistance  Long/Short term  N	Bedning Radius Dynamic/Static mm
GJXFH-1	1	(2.0±0.2)×(3.0±0.2)	8	30/60	300/1000	15/30
GJXFH-2	2	(2.0±0.2)×(3.0±0.2)	8.5	30/60	300/1000	15/30
GJXFH-4	4	(2.0±0.2)×(3.0±0.2)	10	30/60	300/1000	15/30
GJXH-1	1	(2.0±0.2)×(3.0±0.2)	9	30/60	300/1000	15/30
GJXH-2	2	(2.0±0.2)×(3.0±0.2)	9.5	30/60	300/1000	15/30
GJXH-4	4	(2.0±0.2)×(3.0±0.2)	10	30/60	300/1000	15/30



  Note:
1. Cables can be supplied with a range of single mode or multimode fibers.
2. Specially designed Cable structure is available on request.
