The Definition of Multi Mode Fiber Optic Cable

Multimode fiber (Multi Mode Fiber) - Core thicker (50 or 62.5μm), can transmit light in multiple modes. But its mode dispersion between the larger, which limits the transmission frequency of the input digital signal [1], and more severe with increasing distance from the meeting. Therefore, multimode fiber transmission distance is more recent, generally only a few kilometers. The following table, the bandwidth of multimode fiber optic cable for the comparison:

CommScope's multimode fiber optic cable into multimode OptiSPEED & reg; solution (62.5 / 125μm) and 10 Gigabit multimode LazrSPEED & reg; solution (Gigabit laser optimized 50 / 125μm). LazrSPEED divided into three series, namely LazrSPEED 150,300,550 series and LazrSPEED Gigabit multimode fiber optic cable through the UL DMD certification.

Product Name: LazrSPEED 300 outdoor multimode fiber optic cable

product detailed information:

LazrSPEED Outdoor cables (non-metallic sheathed cable). Black, Operating temperature: -40 to 70 ℃, the maximum tension force: 275kg. (2670N)

<LI> cable minimum bend radius; installation, 20 times the cable diameter, after installation, 10 times the cable diameter. <TD class = STYLE16

Product Number: 5002-006A-ZXBK 5002-012A-ZXBK 5002-024A-ZXBK

LazrSPEED 300 outdoor multimode fiber optic cable

LazrSPEED 300 outdoor multimode fiber optic cable

Core Number: 61224

Outside diameter (mm): 12.4 12.4 12.4

Public code: 700 012 347 700 012 347 700 012 347

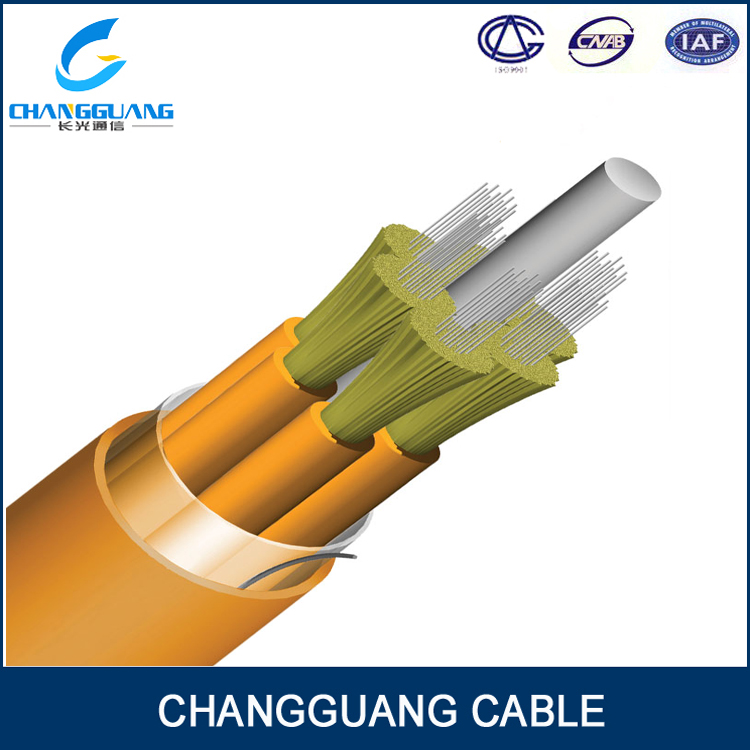

Product Name: OptiSPEED indoor multimode fiber optic backbone

product detailed information:

Core diameter: 62.5 m ± 2.5 m support backbone network and fiber to the workstation applications.

It can be applied to an optical cable to the user device junction with the horizontal subsystem building entrance and vertical lines subsystems connected.

Gray-blue or orange rind.

OptiSPEED indoor multimode fiber optic backbone

OptiSPEED indoor multimode fiber optic backbone

UL fire rating: OFNR

The minimum bending radius of the cable

During installation: 20 times the cable diameter

After installation: 10 times the cable diameter
