ADSS All Dielectric Self-supporting Aerial Cable
ADSS Fiber Optic Armored Cable
Product Description

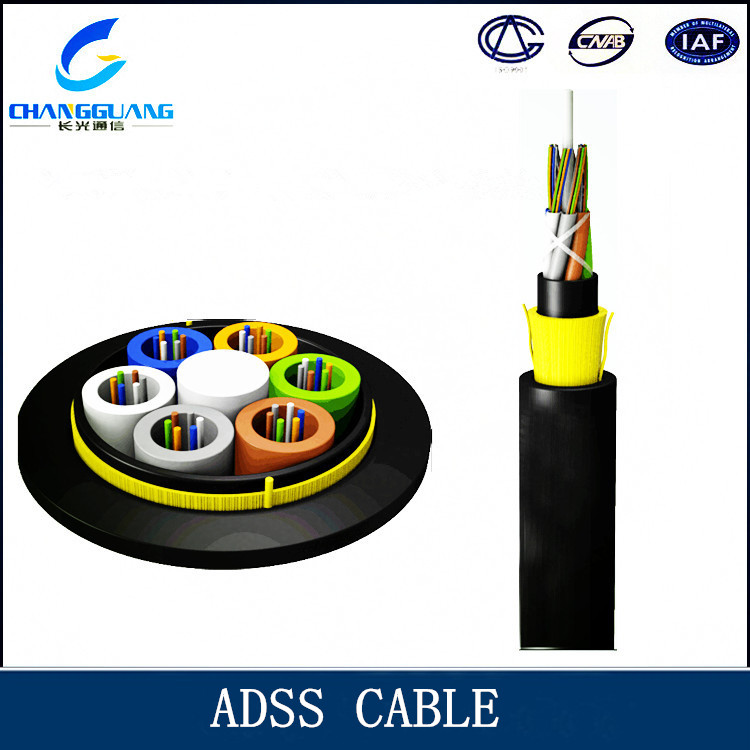

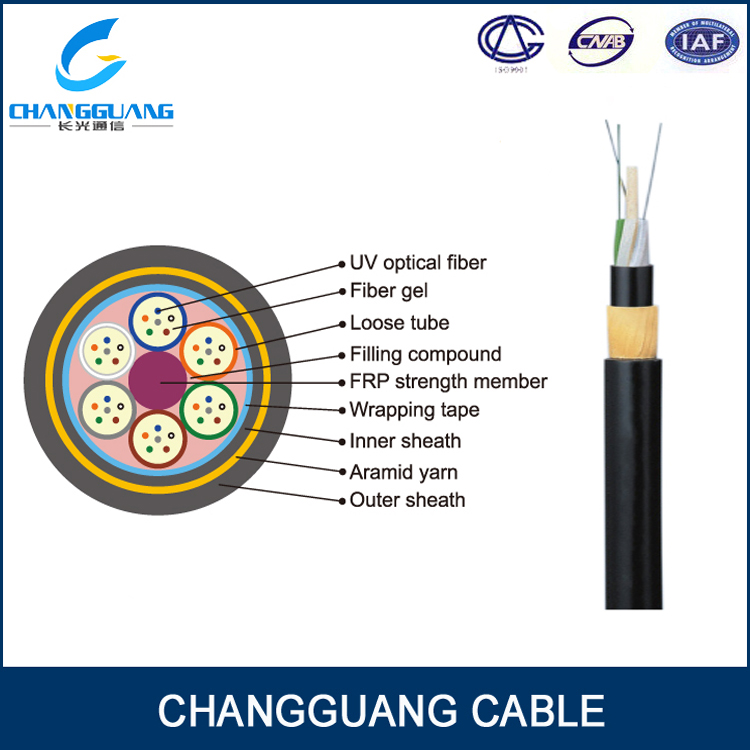

ADSS Cable ( ADSS fiber optic armored cable ) is loose tube stranded. Fibres are positioned into loose tube made of high modulus plastics. The tubes are filled with a water-resistant around FRP(Fibre Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound, it is covered witha thin polyethylene (PE) inner sheath. After two layers of Aramid yarns are applied in two directions over the inner sheath as strength member, the cable is completed with PE or AT outer sheath.After two layers of Aramid yarns are applied in two directions over the inner sheath as strength member, the cable is completed with PE or AT outer sheath.
Characteristics
1.Loose tube design,stable performance and compatibility with all common fiber types
2. Self-supporting, Instead of Aramid yarn or glass yarn,there is no support or messenger wire required.
3.Track-resistant &jacket available,For 10KV and 35KV power lines can use polyethylene(PE), for 110KN and 220KN power line, must by the resistance to corrosion(AT) outer sheath.
4.Sutable for Aerial self-support installation
Standards
Comply with Standard IEEE 1222-2004 as well as IEC 60794-1.
Application
1.Adopted to Outdoor distribution
2.Suitable for duct and buried method
3.Long distance and local area network communication
4.Used OUTDOOR cabling
Technical Parameters
|
Max allowable working tension (KN) |
Break strength (KN) |
Average working tension (N) |
Weight (Kg/km) PE sheath |
Weight (Kg/km) AT sheath |
Diameter (mm) |
Opearation temperature (°c) |
|
2.5 |
6.25 |
1.56 |
119 |
126 |
12.0 |
-40~+60 |
|
3.5 |
8.75 |
2.19 |
121 |
129 |
12.2 |
|
|
4.5 |
11.25 |
2.81 |
124 |
132 |
12.3 |
|
|
6.0 |
15.0 |
3.75 |
128 |
136 |
12.5 |
|
|
7.0 |
17.5 |
4.38 |
131 |
139 |
12.7 |
|
|
8.0 |
20.0 |
5.0 |
134 |
142 |
12.8 |
|
|
9.0 |
22.5 |
5.63 |
136 |
144 |
12.0 |
|
|
10.0 |
25.0 |
6.25 |
138 |
147 |
13.0 |
|
|
11.0 |
27.5 |
6.88 |
142 |
150 |
13.0 |
|
|
12.0 |
30.0 |
7.5 |
144 |
153 |
13.2 |
|
|
14.0 |
35 |
8.75 |
148 |
157 |
13.5 |
|
|
16.0 |
40 |
10.0 |
154 |
163 |
13.7 |
|
|
18.0 |
45 |
11.25 |
159 |
169 |
14.0 |
|
|
20.0 |
50 |
12.5 |
164 |
173 |
14.2 |
