GYXTW Unitube Light-Armored Fiber Optical Cable for Aerial
Product Description

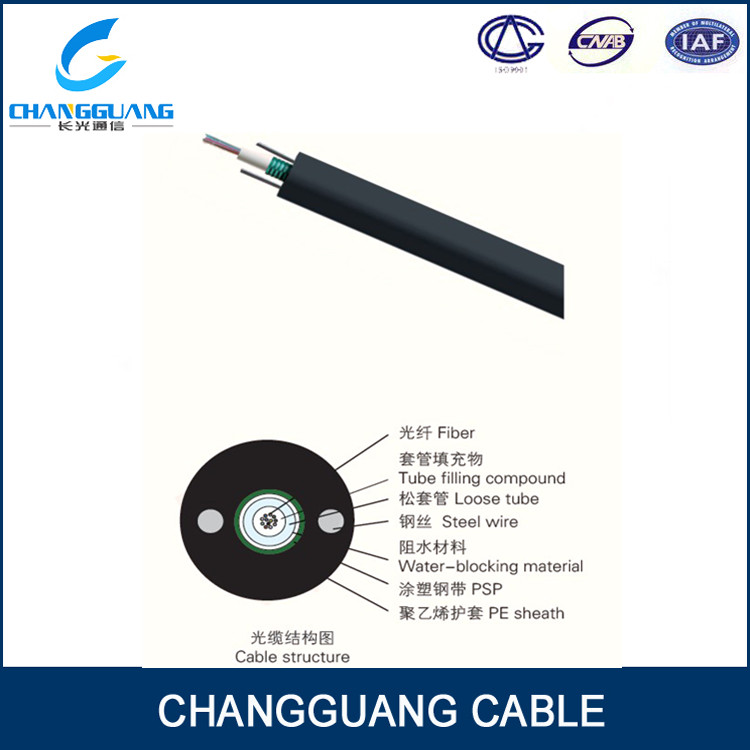

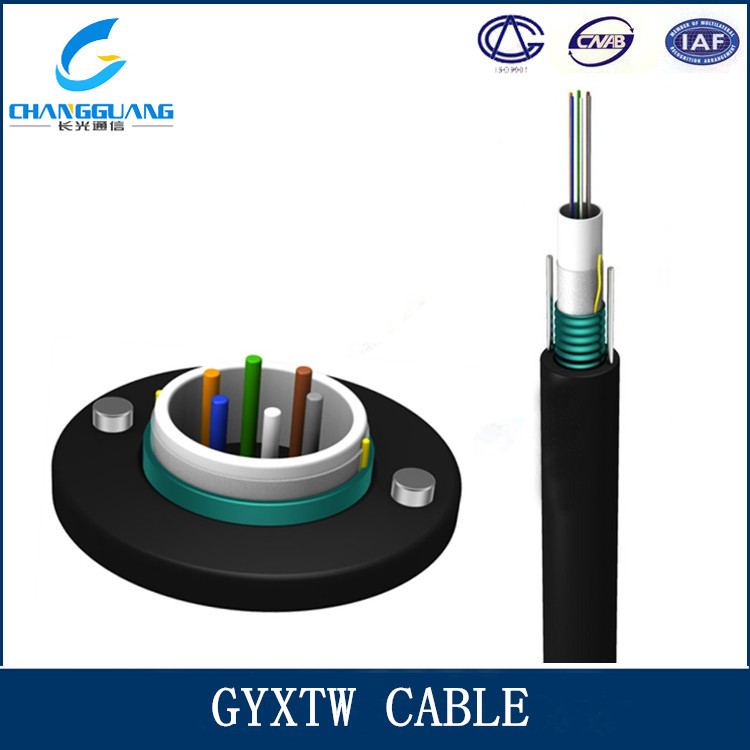

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.
Characteristics
1.Good mechanical and temperature performance
2..High strength loose tube that is hydrolysis resistant
3.Special tube filling compound ensure a critical protection of fiber
4.Crush resistance and flexibility
5.PSP enhancing moisture-proof
6.Two parallel steel wires ensure tensile strength
7.Small diameter, light weight and friendly installation
Application
1.Adopted to Outdoor distribution.
2.Suitable for aerial .pipeline laying method.
3.Long distance and local area network communication
Technical Parameters
|
Cable Count |
Out sheath |
Weight |
Minimum allowable Tensile Strength |
minimum allowable Crush Load |
Minimum Bending Radius |
Storage |
|||
|
(MM) |
(KG) |
short term |
long term |
short term |
long term |
short term |
long term |
(°C) |
|
|
2 |
8.3 |
78.00 |
1500 |
600 |
1000 |
300 |
20D |
10D |
-40+60 |
|
4 |
8.3 |
78.00 |
1500 |
600 |
1000 |
300 |
20D |
10D |
-40+60 |
|
6 |
8.3 |
78.00 |
1500 |
600 |
1000 |
300 |
20D |
10D |
-40+60 |
|
8 |
8.3 |
78.00 |
1500 |
600 |
1000 |
300 |
20D |
10D |
-40+60 |
|
10 |
8.3 |
78.00 |
1500 |
600 |
1000 |
300 |
20D |
10D |
-40+60 |
|
12 |
8.3 |
78.00 |
1500 |
600 |
1000 |
300 |
20D |
10D |
-40+60 |
