GJPFJV Multi Purpose Distribution Fiber Optic Cable
Product Description

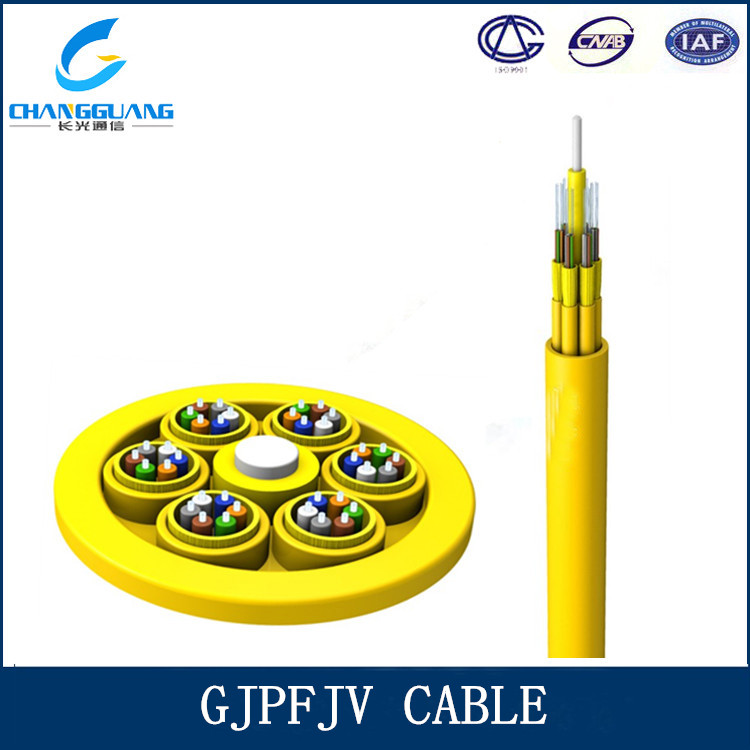

GJPFJV Multi-purpose Distribution Fiber Optic Cable use 6-fiber subunits(900 um tight buffer fiber ,aramid yarn as strength member),A fiber reinforced plastic(FRP) locates in the center of core as a non-metallic strength member,The subunits are stranded around the cable core,The cable is completed with a LSZH(Low smoke,Zero halogen,Flame-retardant)jacket.
Characteristics
1. Stranded non-metallic strength member structure ensure the cable endure larger tensile strength
2.Compact structure with high fiber capacity and density
3.All dielectric structure protect it from enectromagnetic influence
4.The jacket anti-corrosion, anti-water, anti-ultraviolet radiation, flame-retardant and harmless to environment etc.
5.Scientific desigh with serious processing art.
Indoor any purpose cable distribution ,Backbone distribution cable in a building.
Standards
Comply with standard YD/T 1258.2-2003,IECA-596,GR-409,IEC 60794-2-10/11,etc;
and meet the requirements of UL approval for OFNR and OFNP.
|
Cable Code |
Cable Diameter
mm |
Cable Weight Kg/km |
Tensile Strength Long/Short term N |
Crush Resistance Long/Short term N/100mm |
Bending Radius Dynamic/Static mm |
|
GJPFJV-024 |
10.4±0.5 |
96 |
400/1320 |
300/1000 |
20D/10D |
|
GJPFJV-030 |
12.4±0.5 |
149 |
400/1320 |
300/1000 |
20D/10D |
|
GJPFJV-036 |
13.5±0.5 |
185 |
400/1320 |
300/1000 |
20D/10D |
|
GJPFJV-048 |
15.7±0.5 |
265 |
400/1320 |
300/1000 |
20D/10D |
|
GJPFJV-060 |
18.0±0.5 |
350 |
400/1320 |
300/1000 |
20D/10D |
|
GJPFJV-072 |
20.5±0.5 |
440 |
400/1320 |
300/1000 |
20D/10D |
|
GJPFJV-096 |
20.5±0.5 |
448 |
400/1320 |
300/1000 |
20D/10D |
|
GJPFJV-108 |
20.5±0.5 |
448 |
400/1320 |
300/1000 |
20D/10D |
Note
1. Cables can be supplied with a range of single mode or multimode fibers.
2. Specially designed Cable structure is available on request.
