GJFJV Multi Purpose Distribution Fiber Optical Cable
GJFJV - simplex, PVC sheath, SM: 9/125, MM1: 50/125, MM2: 62.5/125.

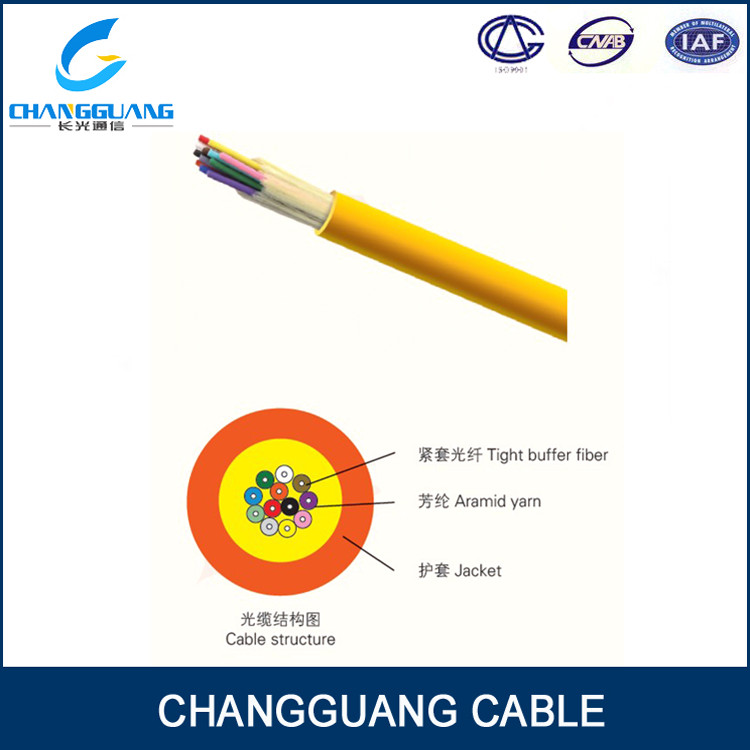

SXC simplex fiber uses single flame-retardant tight buffer fiber as optical communication medium. the tight buffer fiber wrapped with a layer of aramid yarn as strength member units.,and the cable is completed with a PVC or LSZH jacket.
Characteritics
1.Tight buffer fiber ease of stripping
2.Tight buffer fiber have excellent flame-retardant performance
3.Aramid yarn as strength member makes cable have excellent tensile strength
4. The jacket anti-corrosion, anti-water, anti-ultraviolet radiation, flame-retardant and harmless to enviroment etc.
Application:
1.Optical fibre jumper or pigtail
2. Indoor riser level and plenum level cable distribution
Standards:
Comply with standard YD/T 1258.2-2003, ICEA-596, GR-409, IEC 60794-2-10/11, etc; and meet the requirments of UL approval for OFNR and OFNP.
|
Cable code |
Cable Size mm |
Cable weight Kg/km |
Tensilse Strength Long/Short term N |
Crush Resistance Long/Short term N |
Bedning Radius Dynamic/Static mm |
Jacket Material |
|
GJFJV-02 |
4.1±0.25 |
12.4 |
200/660 |
300/1000 |
20D/10D |
PVC/LSZH |
|
GJFJV-04 |
4.8±0.25 |
16.2 |
200/660 |
300/1000 |
20D/10D |
PVC/LSZH |
|
GJFJV-06 |
5.2±0.25 |
20 |
200/660 |
300/1000 |
20D/10D |
PVC/LSZH |
|
GJFJV-08 |
5.6±0.25 |
26 |
200/660 |
300/1000 |
20D/10D |
PVC/LSZH |
|
GJFJV-10 |
5.8±0.25 |
28 |
200/660 |
300/1000 |
20D/10D |
PVC/LSZH |
|
GJFJV-12 |
6..4±0.25 |
31.5 |
200/660 |
300/1000 |
20D/10D |
PVC/LSZH |
|
GJFJV-24 |
8.5±0.25 |
42.1 |
200/660 |
300/1000 |
20D/10D |
PVC/LSZH |
Note:
1. Cables can be supplied with a range of single mode or multimode fibers.
2. Specially designed Cable structure is available on request.
