GJBFJV Multi Purpose Break Out Cable Fiber Optic

Description

Introduction

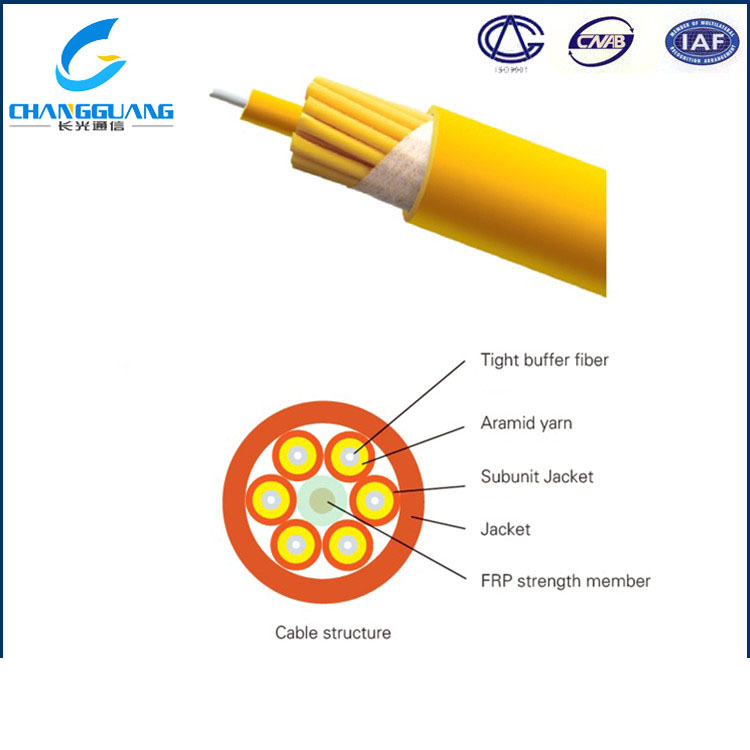

GJBFJV multi-purpose break-out cable use simplex cable as subunit. A fiber reinforced plastic (FRP) locates in the center of core as a  non-metallic strength member. The subunits are stranded around the cable core. The cable is completed wih a PVC or LSZH jacket.

Characteristics
1.Good mechanical and environmental characteristics;

2. Flame retardant characteristics meet the requirements of relevant standards;.

3. The mechanical characteristics of jacket meet the requirements of relevant standards;

4. Soft, flexible, easy to lay and splice, and with big capacity data transmission;

5.Meet various requirements of market and clients.


Application:

1.Indoor any purpose cabling;

2.Backbone distribution cable in building.
3.Installation: wall, interlayer, pipe, trough, duct.




Cable Code	Cable Diameter mm	Cable Weight Kg/km	Tensile Strength Long/Short term N	Crush Resistance Long/Short term N/100mm	Bending Radius Dynamic/Static mm	Jacket Material
GJBFJV-02	7.2±0.5	38	200/660	300/1000	20D/10D	PVC/LSZH
GJBFJV-04	7.2±0.5	45.5	200/660	300/1000	20D/10D	PVC/LSZH
GJBFJV-06	8.3±0.5	63	200/660	300/1000	20D/10D	PVC/LSZH
GJBFJV-8	9.4±0.5	84	200/660	300/1000	20D/10D	PVC/LSZH
GJBFJV-10	10.7±0.5	125	200/660	300/1000	20D/10D	PVC/LSZH
GJBFJV-12	12.2±0.5	148	200/660	300/1000	20D/10D	PVC/LSZH
GJBFJV-18	12.2±0.5	153	400/1320	300/1000	20D/10D	PVC/LSZH



 Note:

1. Cables can be supplied with a range of single mode or multimode fibers.
2. Specially designed Cable structure is available on request.
