GYTC8A Finger 8 Self-supporting Type Fiber Opical Cable

GYTC8A  fiber optic cable

Product Description

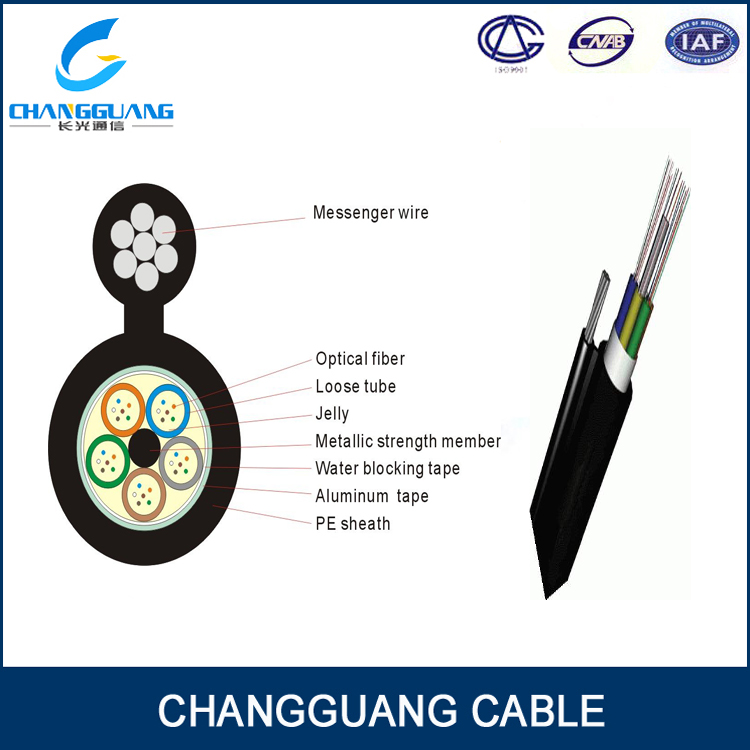

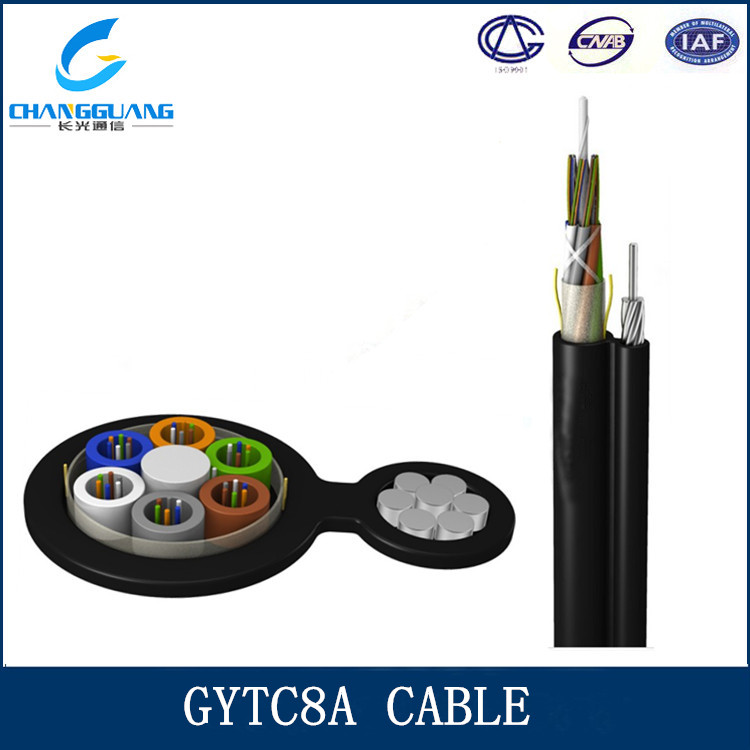

The fibers,  250μm , are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire locates in the center of core as a metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular cable core. After an Aluminum Polyethylene Laminate (APL) moisture barrier is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene (PE) sheath to be figure 8 structure.

Characteristics

1.High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cost.

2.Good mechanical and temperature performance

3.High strength loose tube that is hydrolysis resistant

4.Special tube filling compound ensure a critical protection of fiber

5.The following measures are taken to ensure the cable watertight:

Steel wire used as the central strength member,Loose tube filling compound,100% cable core filling - APL moisture barrier

Standards:

Comply with Standard YD/T 1155-2001 as well as IEC60794-1.

Application

The cable is specifically for self-supporting aerial installation.

Technical Parameter


Cable  type	Fiber  count	Tubes	Fillers	Cable  diameter  mm	Cable weight  Kg/km	Tensilse Strength  Long/Short term     N	Crush Resistance  Long/Short term  N	Bedning Radius Dynamic/Static mm
GYTC8A-2-6	2-6	1	4	6.8×9.2×18.0	214	600/1500	300/1000	10D/20D
GYTC8A -8-12	8-12	2	3	6.8×9.2×18.0	214	600/1500	300/1000	10D/20D
GYTC8A -14-18	14-18	3	2	6.8×9.2×18.0	214	600/1500	300/1000	10D/20D
GYTC8A -20-24	20-24	4	1	6.8×9.2×18.0	214	600/1500	300/1000	10D/20D
GYTC8A -26-30	26-30	5	0	6.8×9.2×18.0	214	600/1500	300/1000	10D/20D
