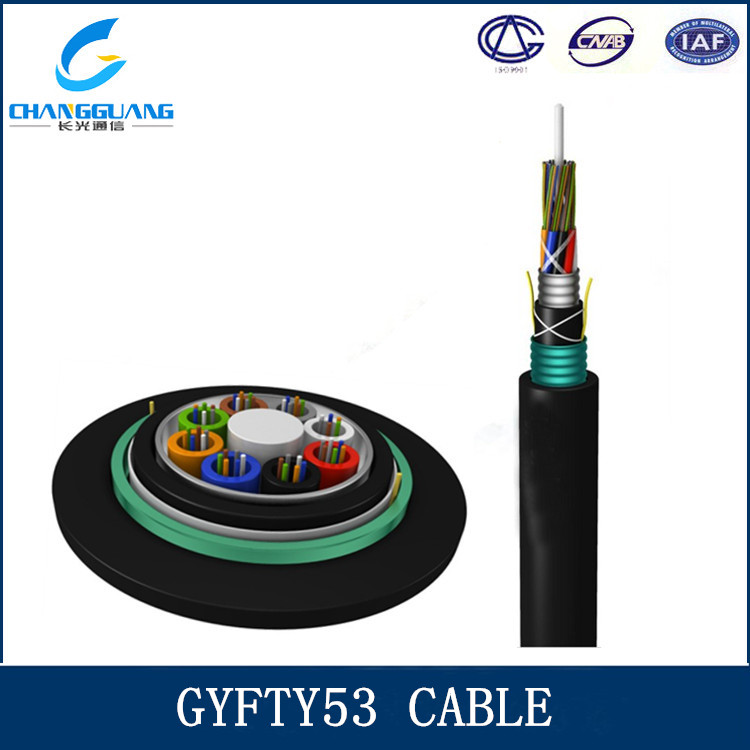

GYFTY53 Stranded Loose Tude Non-metallic Fiber Optic Cable
Product Description

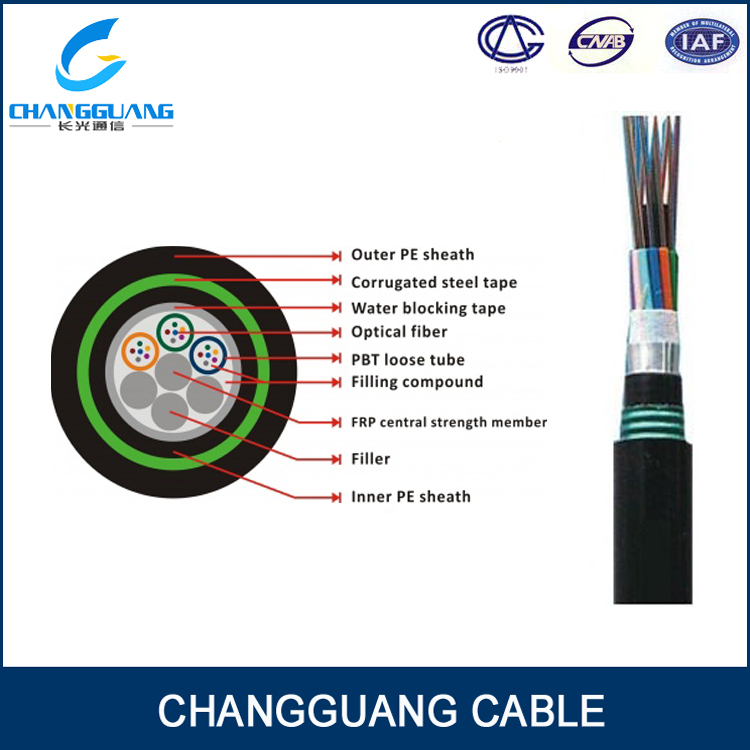

The fibers, 250um, are positioned in a loose tube made of a high modulus plastics. The tubes are filled with a water-resistant filling compound . A fiber Reinforced Plastics (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular cable core. Then the cable core is covered with a thin Polyethylene (PE) inner sheath, which is filled with jelly to protect it from water ingress. A layer of water blocking material is applied around the cable core to prevent it from water ingress all the same. After a corrgated steel tape armor is applied, the cable is completed with a PE outer sheath.
Characteristics
1. Good mechanical and temperature performance
2. High strength loose tube that is hydrolysis resistant
3.Special tube filling compound ensure a critical protection of fiber
4. Crush resistance and flexibility
5.The following measures are taken to ensure the cable watertight
6.Steel wire used as the central strength member, Loose filling compound,100%cable core filling,APL moisture barrier,PSP enhancing moisture-proof, Water-blocking material
Standards
Comply with Standard YD/T 901-2009 as well as IEC 60794-1.
Application
Long-distance communication, local trunk line, CATV & computer networks system
Technical Parameters
|
Fiber count |
Nominal diameter (mm) |
Nominal weight (kg/km) |
Max fiber per tube |
No. Of (tubes+fillers) |
Allowable tensile load (N) |
Allowable load resistance (N/100mm) |
||
|
Short term |
Long term |
Short term |
Long term |
|||||
|
2-36 |
13.9 |
202 |
6 |
6 |
3000 |
1000 |
3000 |
1000 |
|
38-72 |
15.1 |
241 |
12 |
6 |
3000 |
1000 |
3000 |
1000 |
|
74-96 |
17.1 |
290 |
12 |
8 |
3000 |
1000 |
3000 |
1000 |
|
98-120 |
18.6 |
333 |
12 |
10 |
3000 |
1000 |
3000 |
1000 |
|
122-144 |
20.2 |
381 |
12 |
12 |
3000 |
1000 |
3000 |
1000 |
|
>144 |
Design according to your requirement. |
|||||||
